Smart Racket Rental Kiosk Hardware

Our smart kiosk solution is designed with durability, security, and ease of use in mind. Each unit is built to withstand heavy usage while maintaining a sleek, professional appearance.

Available Models

KioskForce K180-6C

Download Specification for KioskForce K180-6C

The KioskForce K180-6C is a rugged industrial kiosk equipped with a 21.5-inch touchscreen and a 6-door locker system. This kiosk is designed to withstand harsh industrial and commercial environments.

Features

• Industrial-grade FM levelling caster wheels for stability and durability
• 21.5-inch touchscreen with multi-gesture support for easy navigation
• Embedded 6 locker cells with door-open sensors for secure storage
• Energy-efficient LED lighting
• Unattended payment enabled
• Emergency access through the back panel for maintenance and repairs
• Ethernet wired connectivity with optional WiFi and 4G/5G connectivity

Standard Dimensions

• Height: ~1830mm
• Width: 750mm
• Depth: 400mm
• Weight: ~100kg

Power Supply

• Input: 110V-240V AC, 50/60Hz
• Universal power supply
• Auto-voltage adjustment

Warranty

• 1-year parts-only back-to-base

Product Code Explanation

K180-6C:

• K: Kiosk
• 180: Height
• 6C: 6-door built-in locker

KioskForce L180-10C

Download Specification for KioskForce L180-10C

Features

• Industrial-grade FM leveling caster wheels for stability and durability
• 10 locker cells with door-open sensors for secure storage
• Energy-efficient LED lighting
• Emergency access through the back panel for maintenance and repairs
• Ethernet wired connectivity with optional WiFi and 4G/5G connectivity

Standard Dimensions

• Height: ~1830mm
• Width: 750mm
• Depth: 400mm
• Compartment: ~310mm x 270mm x 400mm
• Weight: 112kg

Power Supply

• Input: 240V 50Hz AC

Warranty

• 1-year parts-only back-to-base

Product Code Explanation

L180-10C:

• L: Locker
• 180: Height
• 10C: 10-door built-in locker

Arrangement Options

We offer flexible arrangements to suit different venue sizes and rental demands. Here are some common setups:

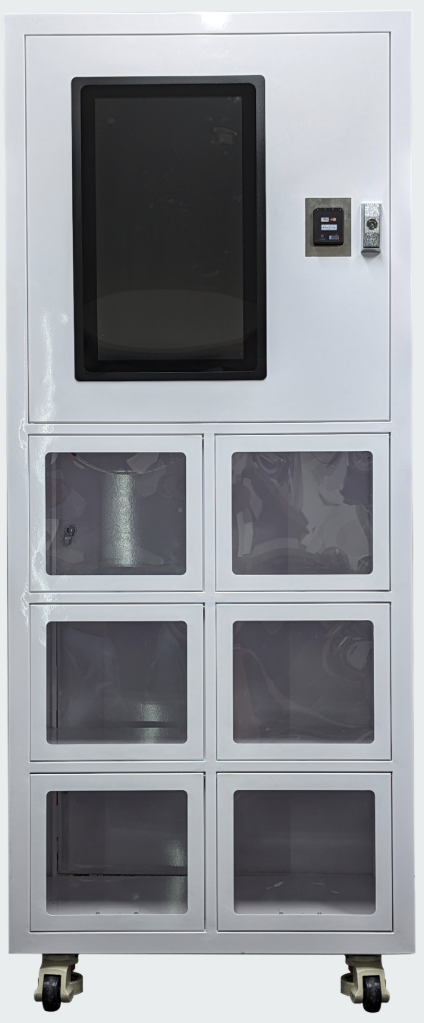

Basic Setup (6 Items)

• 1× K180-6C Kiosk
• Total Capacity: 6 items
• Perfect for: Small clubs, starter installations
• Features: All-in-one solution with integrated touchscreen and payment system
• Space Required: ~0.3m²

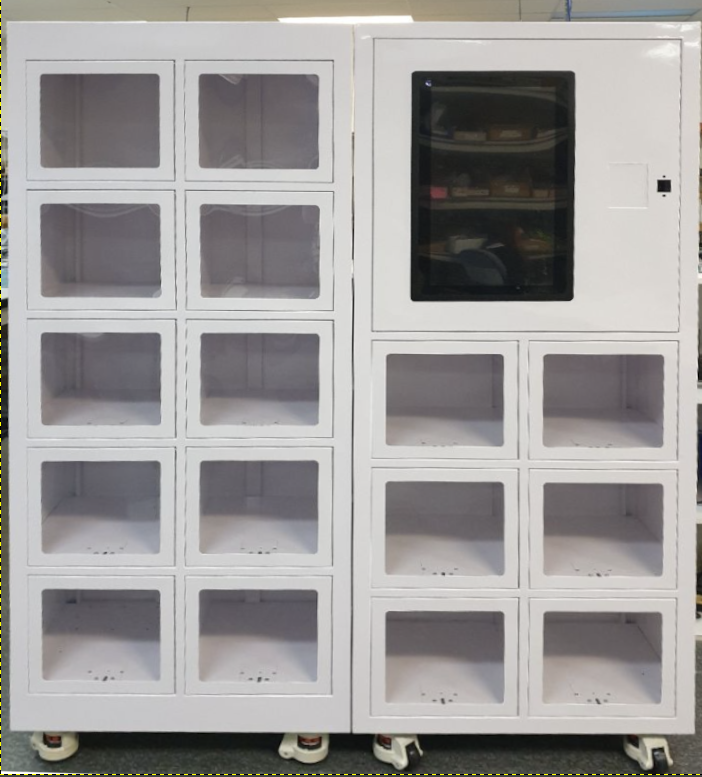

Standard Setup (16 Items)

• 1× K180-6C Kiosk
• 1× L180-10C Locker
• Total Capacity: 16 items (6 + 10)
• Perfect for: Medium-sized venues
• Features: Separate payment kiosk with additional storage capacity
• Space Required: ~0.6m²

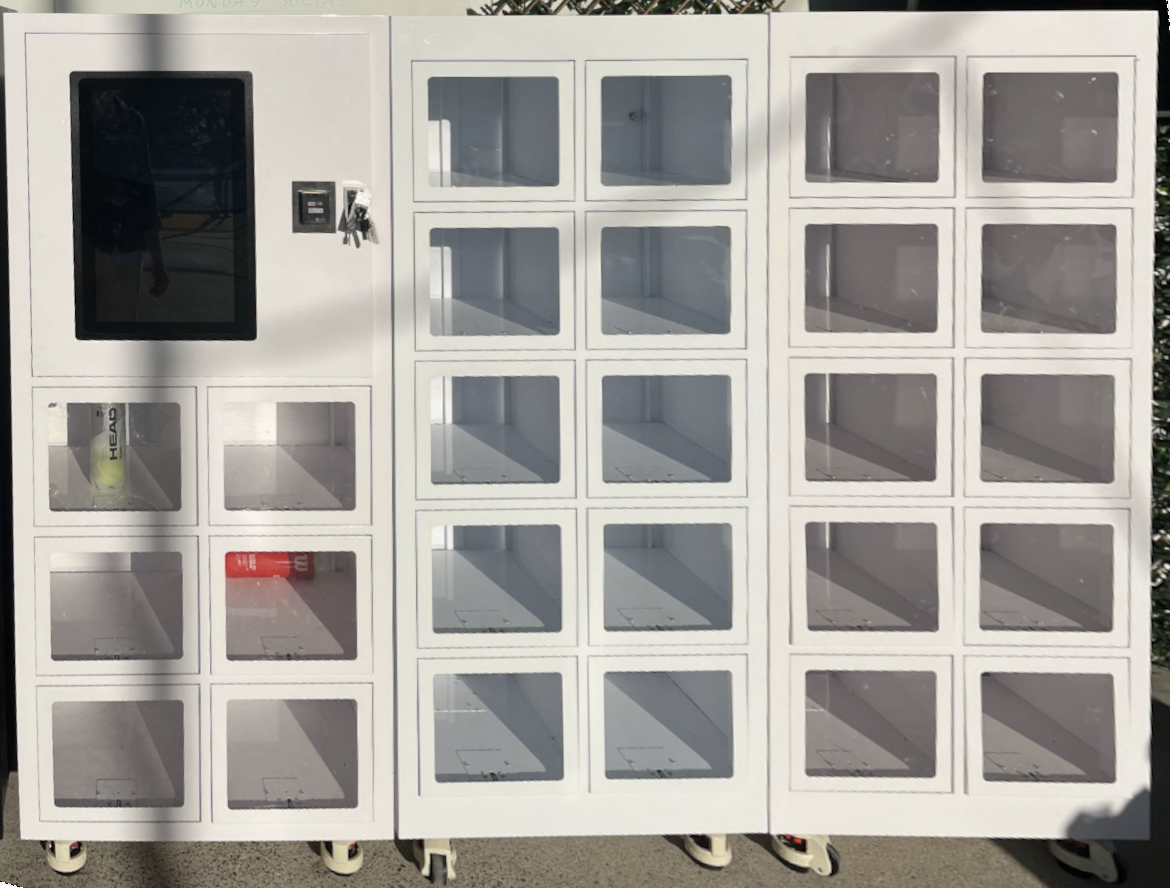

Extended Setup (26 Items)

• 1× K180-6C Kiosk
• 2× L180-10C Lockers
• Total Capacity: 26 items (6 + 10 + 10)
• Perfect for: Large venues, busy facilities
• Features: Maximum capacity with centralized control
• Space Required: ~0.9m²

All arrangements include:

• Central management through the kiosk interface
• Unified access control
• Integrated monitoring
• Scalable design for future expansion

Contact Us to discuss the best arrangement for your venue.

Technical Specifications

• Kiosk Dimensions: 2m x 1m x 0.5m
• Power Requirements: 110V-240V, 50/60Hz
• Internet: WiFi connectivity required
• Storage Capacity: 20-40 rackets (customizable)
• Payment Methods: Credit/Debit cards, Mobile payments
• Computing Platform: Android industrial-grade touchscreen mainboard
• Infrastructure: Amazon AWS — enterprise-grade cloud reliability

Computing Platform

Every kiosk runs on an Android industrial-grade mainboard with an integrated 21.5-inch multi-touch display. This is purpose-built hardware designed for 24/7 unattended operation — not a repurposed consumer tablet or a hobbyist single-board computer.

Why Android Industrial Boards?

AWS Cloud Infrastructure

The management dashboard and all kiosk-to-cloud communication runs on Amazon Web Services (AWS) — the same infrastructure trusted by Netflix, Airbnb, and Commonwealth Bank.

• 99.99% uptime SLA — Your dashboard is always available
• Australian region hosting — Data stays local, low latency
• Automatic scaling — Handles peak demand without slowdowns
• Enterprise security — Encrypted connections, SOC 2 compliant
• Real-time sync — Kiosks push data to the dashboard in seconds, not minutes

Remote Management Built In

Because the system is cloud-native:

• Over-the-air updates — New features and security patches delivered automatically
• Remote diagnostics — We can see what’s happening before you call
• Configuration push — Product changes, pricing updates, and machine settings sync instantly across all kiosks
• No on-site IT required — Venue staff never touch the kiosk software

Customisation Options

Every venue is different. Our kiosks are built-to-order, not off-the-shelf — you get exactly what your facility needs.

Custom Planogram & Layout

• Custom locker configurations — We design the planogram (cell sizes, layout, arrangement) to match your equipment mix. Need wider cells for padel rackets? Taller compartments for squash bags? Done.
• Bespoke compartment sizing — Not locked to one cell size. Mix small cells (balls, grips, accessories) with large cells (racket bags, full kits) in the same cabinet.

Colours & Branding

• Custom colours — Match your venue’s brand colours. Not just a sticker — the cabinet finish can be colour-matched.
• Decals & wraps — Full-body vinyl decals with your logo, sponsor branding, or venue artwork. Kiosks that look good get used more.
• Custom branding: From $500 AUD + GST
• Premium finish options: From $300 AUD + GST

Material Quality

• Polycarbonate windows — Not glass. Polycarbonate is 250× more impact-resistant than glass, won’t shatter, and stays clear after years of use.
• Industrial-grade FM levelling casters — Stable on any surface. Lock in place or reposition as needed.

Built for Australia’s Climate

Australian summers are brutal. Our kiosks are engineered to handle extreme heat and harsh indoor/sheltered conditions that would kill consumer-grade equipment. Important: our kiosks are not waterproof. They must be installed under a roof or shelter, protected from rain, splashing, and direct water exposure.

Thermal Management

• Rear ventilation system — Active heat dissipation through rear vents keeps internal electronics cool even at 40°C+ ambient.
• Rugged industrial design — Built to operate in unconditioned spaces: sports club foyers, indoor courtside areas, sheltered outdoor alcoves. Must be protected from rain and water — not waterproof.
• 110V–240V auto-sensing — Universal power input, stable operation through voltage fluctuations.

Smart LED Lighting

• All LED illumination — Zero heat from lighting, minimal power draw. Stays bright for years without bulb replacements.
• Dusk-to-dawn auto-off — Programmable light schedule: lights off after dark so your kiosk doesn’t become an insect magnet. No mosquitoes, no flies, no moths clustering around the screen at night.
• Ambient light sensor ready — Hardware supports automatic brightness adaptation (configurable per venue).

Connectivity: Never Offline

Your kiosk earns money 24/7 — it needs internet 24/7. We support every connection type so you’re never down.

Redundancy: Combine any two — e.g., Ethernet primary + 4G LTE failover. Your kiosk stays online even if the venue WiFi goes down.

FAQ: Hardware Deep-Dive

Can I customise the locker layout for different equipment sizes?

Yes. We design the planogram to your specifications — mix large cells for racket bags with small cells for balls and accessories in the same cabinet.

What colours are available?

Any RAL colour. We colour-match to your venue’s brand palette. Combined with custom decals, your kiosk can carry your full venue identity.

Can the kiosk survive outdoors in Australian summer?

Yes — for heat. Our kiosks have rear ventilation for active heat dissipation, industrial-grade components rated for high ambient temperatures, and are deployed in unconditioned spaces across Australia. However, they are not waterproof — must be installed under shelter, protected from rain and direct water.

Does the lighting attract insects at night?

No. Our LED lighting system can be programmed to auto-off at dusk. When lights are off, insects have no reason to congregate. During the day, LED lights produce negligible UV — far less attractive than fluorescent alternatives.

Can I use Starlink for internet?

Yes. Any standard internet connection works — Ethernet, WiFi, 4G/5G mobile data, or Starlink satellite. For rural and remote venues, Starlink is a fully supported option.
